| Max Drilling Diameter | Ø20mm |
| Motor Power | 850w |
| Chuck Capacity | 3~16mm |
| Spindle Travel | 80mm |
| Class Of Speed | 16 |
| Speed50/60Hz | 190~3000 rpm |
| Spindle Taper | MT2 |
| Max distance from spindle end to surface of table | 470mm |
| Max distance from spindle end to surface of base | 670mm |
| Swing | 380mm |

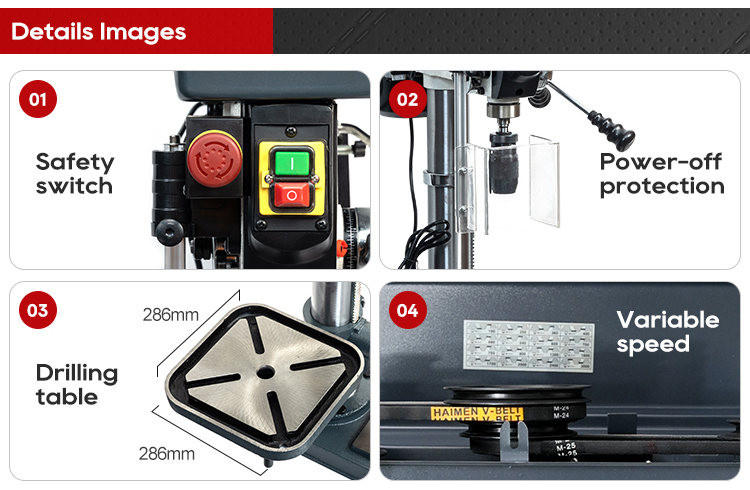

| Table Size | 286×286mm |
| Base Size | 485×290mm |
| Column Diameter | Ø73mm |

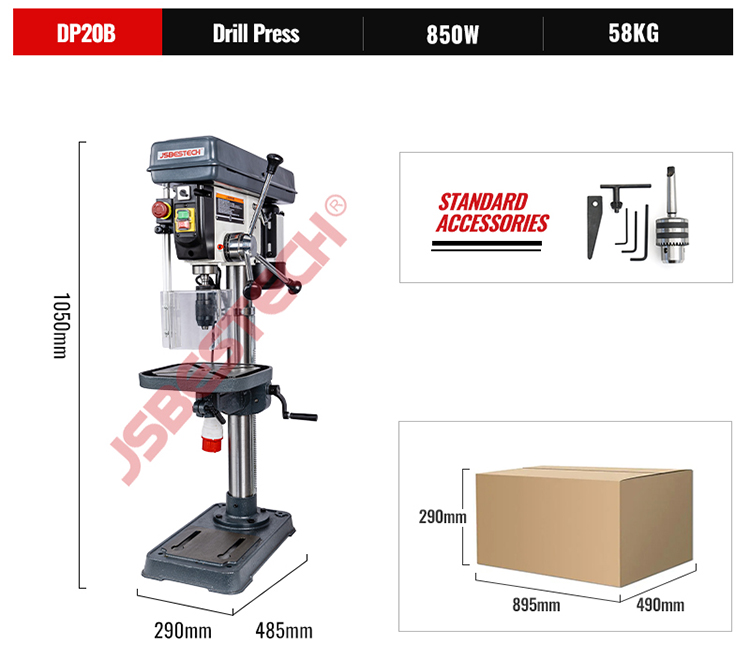

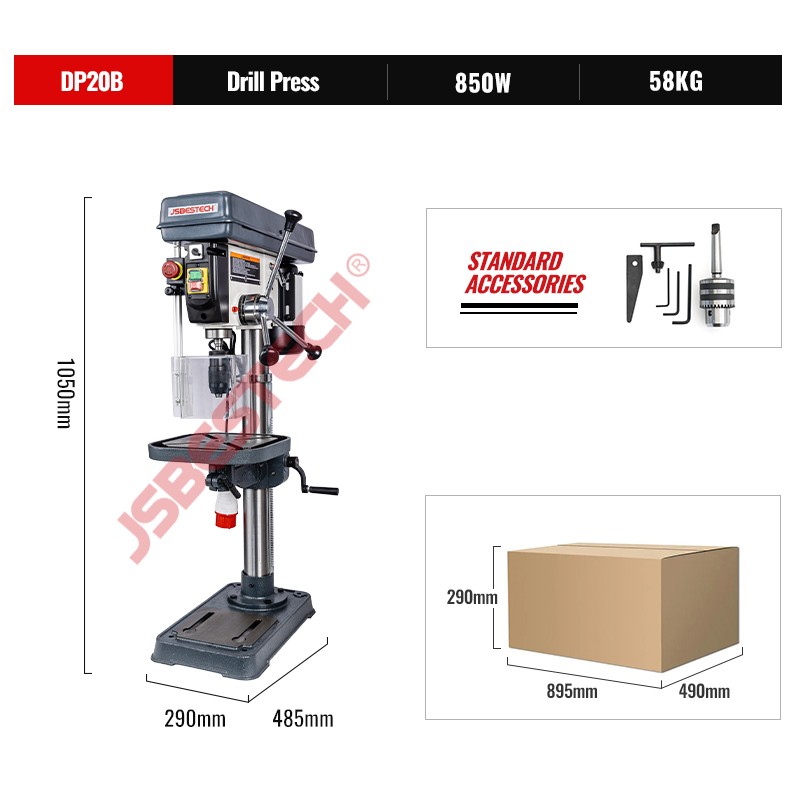

| Height | 1050mm |
| Net Weight/ Gross Weight | 58.0/62.0kg |
| Packing Size | 895×490×290mm |
