| Max Drilling Diameter | Ø16mm(5/8’’) |
| Motor Power | 375/450/550w |
| Chuck Capacity | 3~16mm |
| Spindle Travel | 85mm |
| Class Of Speed | 16 |
| Speed50/60Hz | 180~2770/220~3320 rpm |
| Spindle Taper | MT2 |
| Max distance from spindle axis to surface of column | 180mm |
| Max distance from spindle end to surface of table | 410mm |
| Max distance from spindle end to surface of base | 600mm |
| Swing | 360mm |
| Table Size | 290×290mm |
| Base Size | 460×272mm |
| Column Diameter | Ø72mm |

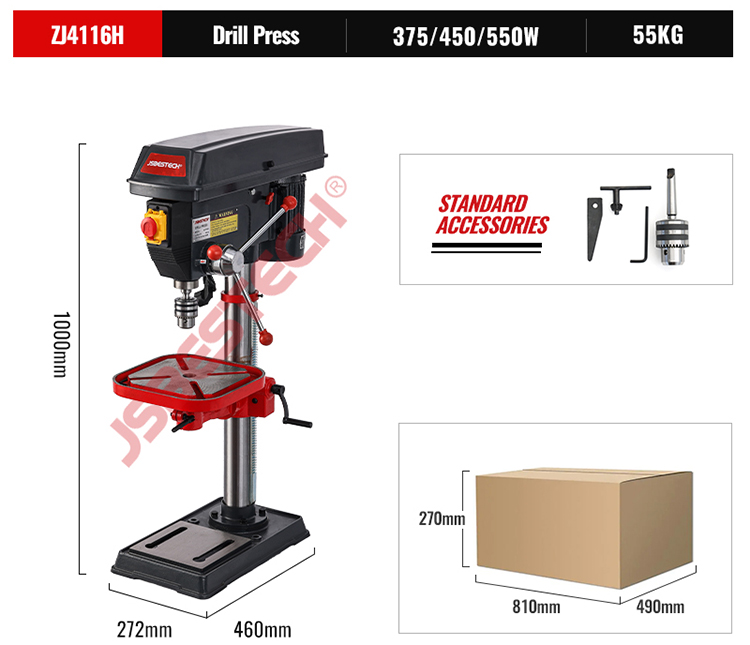

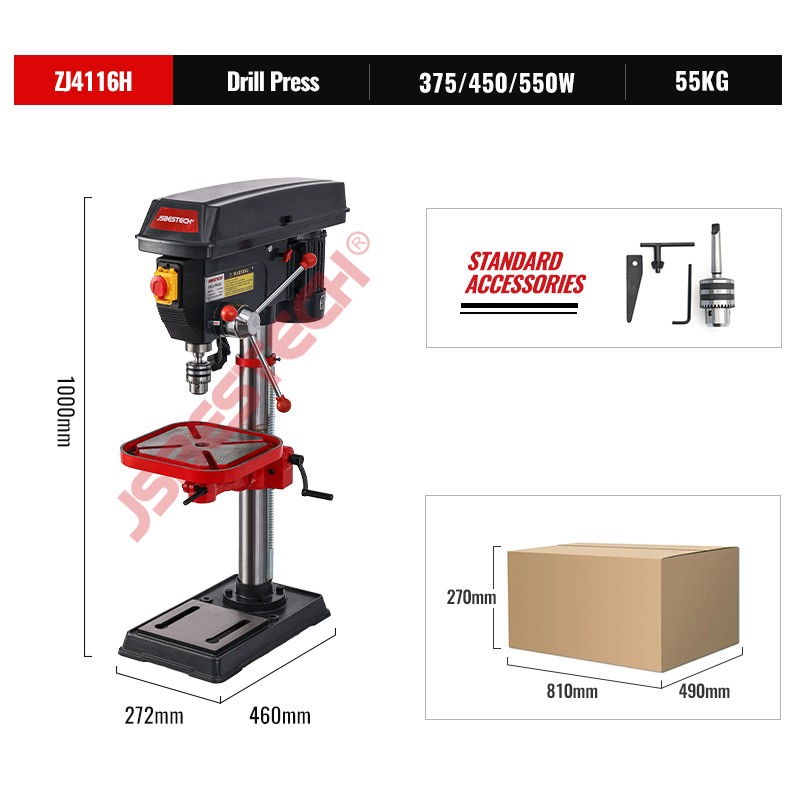

| Height | 1000mm |
| Net Weight/ Gross Weight | 55.0/57.0kg |
| Packing Size | 810×490×270mm |
