| Max Drilling Diameter | Ø25mm(1’’) |
| Motor Power | 1100/1500w |
| Chuck Capacity | 5~20mm |
| Spindle Travel | 120mm |
| Class Of Speed | 12 |
| Speed50/60Hz | 150~2450/180~2940 rpm |
| Spindle Taper | MT3 |
| Max distance from spindle axis to surface of column | 220mm |
| Max distance from spindle end to surface of table | 765mm |
| Max distance from spindle end to surface of base | 1225mm |
| Swing | 440mm |

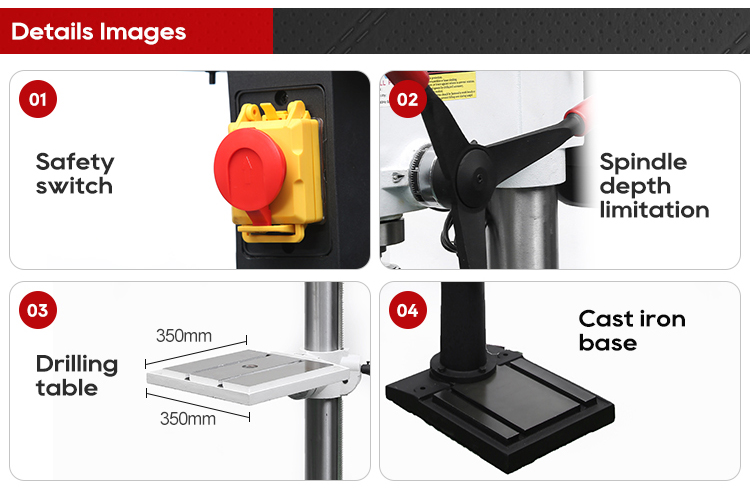

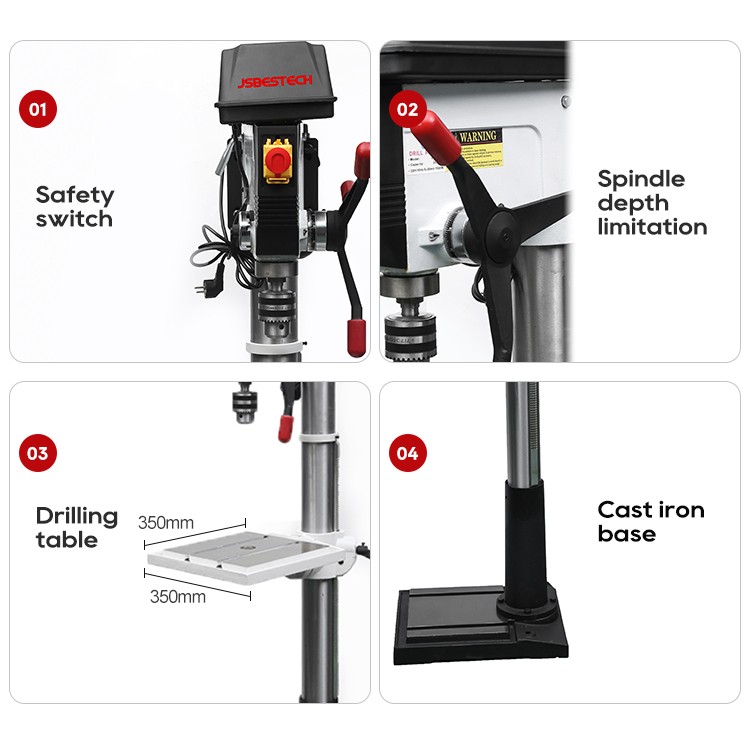

| Table Size | 350×350mm |
| Base Size | 470×360mm |
| Column Diameter | Ø92mm |

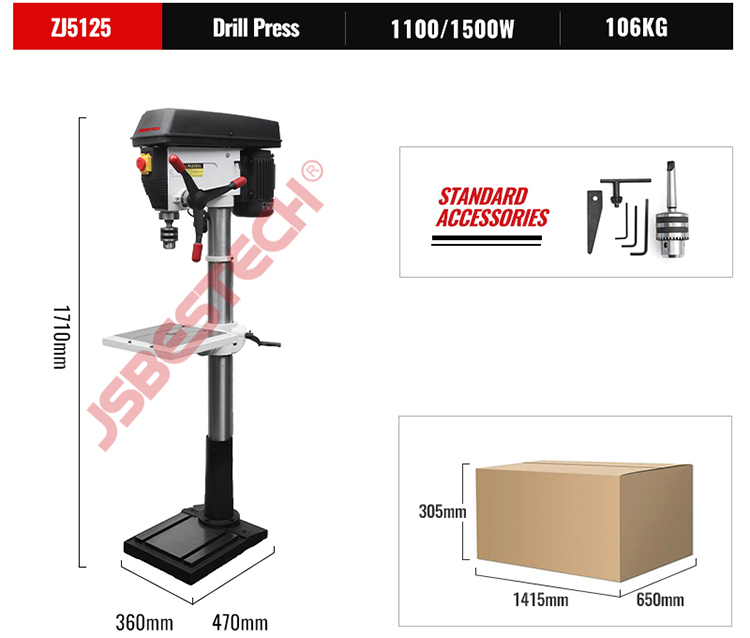

| Height | 1710mm |
| Net Weight/ Gross Weight | 106.0/110.0kg |
| Packing Size | 1415×650×305mm |
