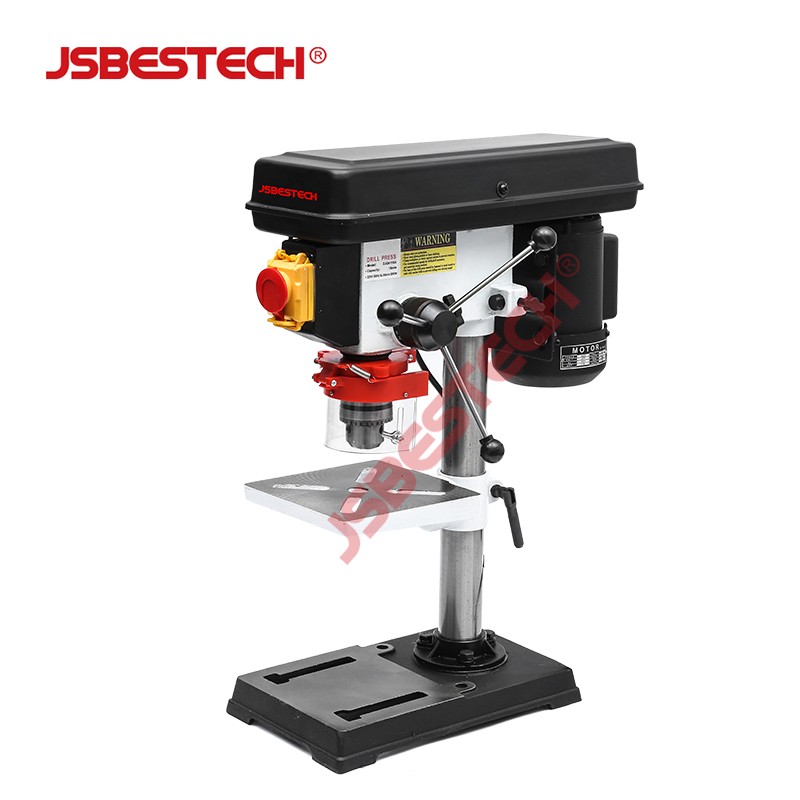

16mm drill press zj4116A central machinery drill press parts
Model | ZJQ4116A |
Max Drilling Diameter |
Φ16mm(5/8'') |
Motor Power |
450/550w |
Chuck Capacity |
3-16mm |
Spindle Travel |
50mm |
Class Of Speed |
9 |
Speed50/60Hz |
400-2500/480~3000rpm |
Spindle Taper |
B16 |
Max distance from spindle axis to surface of column |
115mm |
Max distance from spindle end to surface of table |
245mm |
Max distance from spindle end to surface of base |
330mm |
Swing |
230mm |
Table Size |
170*175 |
Base Size |
320*195 |
Column Diameter |
Φ46mm |

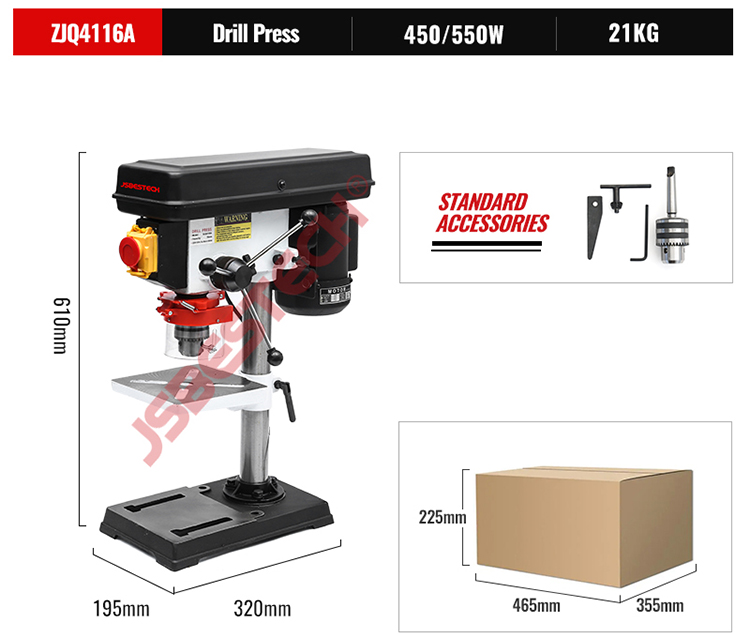

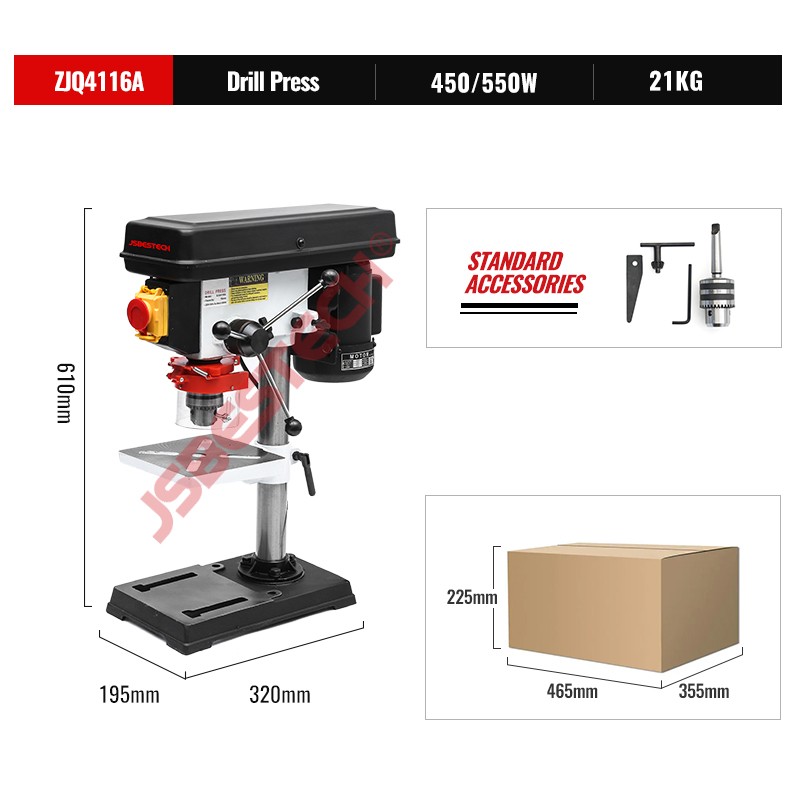

Height |
610mm |
Net Weight/ Gross Weight |
21/22kg |
Packing Size | 465*355*225mm |
