Extremely easy to operate and seldom goes wrong. superbly well robust construction enables it to handle all common metal working duties drilling classroom or workshop process, Clear components are also convenient to install or transport.

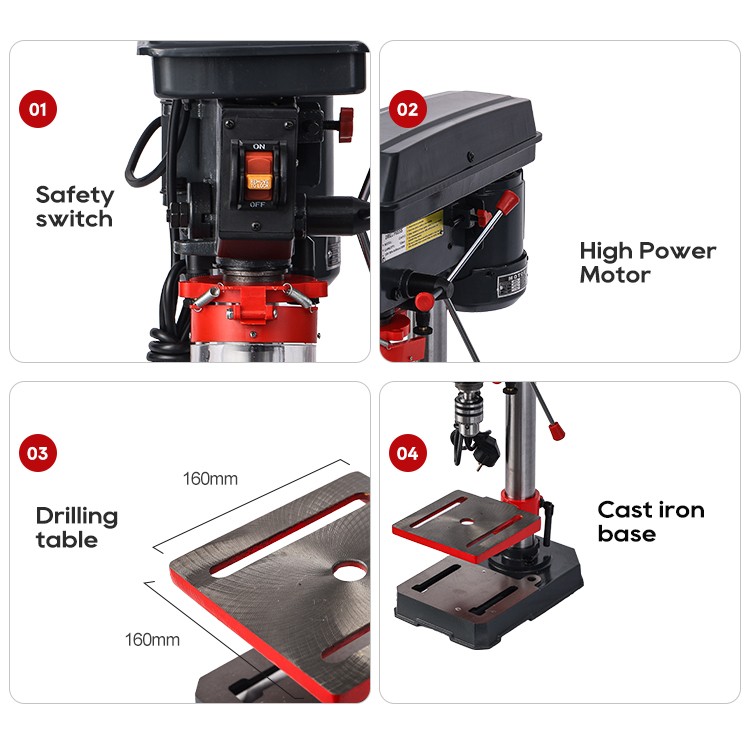

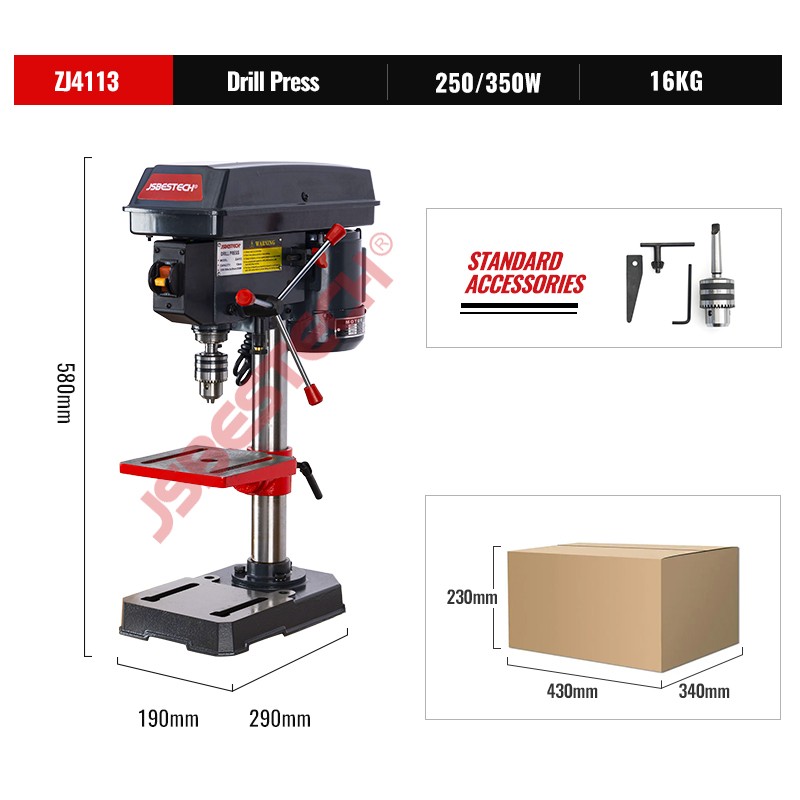

13mm Bench Type Drill Press
1. 1/2'' (13mm) Max.chuck Capacity
2. 210mm Swing
3. 5 Spindle Speeds
4. -45°-0°-+45° Table Tilt L&R
5. Optional Chuck Guard And Micro-switch For CE Requirement
|
Max Drilling Diameter |
Φ13mm(1/2'') |
|
Motor Power |
250/350w |
|
Chuck Capacity |
1.5-13mm |
|
Spindle Travel |
50mm |
|
Class Of Speed |
5 |
|
Speed50/60Hz |
620~2620/740~3140rpm |
|
Spindle Taper |
B16 |
|
Max distance from spindle axis to surface of column |
105mm |
|
Max distance from spindle end to surface of table |
220mm |
|
Max distance from spindle end to surface of base |
300mm |
|
Swing |
210mm |
|
Table Size |
160×160mm |
|
Base Size |
300×195mm |
|
Column Diameter |
Φ46mm |
|
Net Weight/ Gross Weight |
580mm |
|
Net Weight/ Gross Weight |
16/17kg |
|
Packing Size |
430×340×230mm |
|
Standard Accessories |
Optional Accessories |
|
1.Drill chuck 2.Wrench set 3.Aluminium motor |
1.Copper motor 2.Chuck guard with power off 3.Micro switch 4.Vice 5.Key less drill chuck 6.Laser light |
